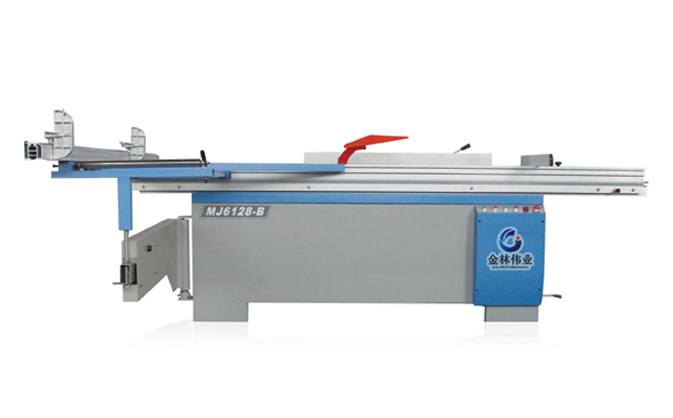

| 產品型號 Type |
MJ6130T |
MJ6128Z |
| 推臺尺寸： Dimension of sliding table |
3000×360mm |
2800×310mm |
| 最大鋸切長度：Gross cut capacity |
3000mm |
2800mm |
| 最大鋸切寬度：Width of cut between saw blade |
1250mm |
1250mm |
| 鋸片直徑：Saw blade diameter |
300mm(∮250-∮300) |
300mm(∮250-∮300) |
| 最大鋸切厚度：Height of cut∮300mm |
80mm |
80mm |
| 主軸轉速：Speed of main saw spindle |
4500/6000rpm |
4500/6000rpm |
| 主軸直徑：Main spindle diameter |
30mm |
30mm |
| 鋸片角度：Tilting saw blade |
0-45° |
90° |
| 主電機功率：Main motor |
4-5.5kw |
4-5.5kw |
| 劃線鋸直徑：Scoring saw blade diameter |
120mm |
120mm |
| 劃線鋸轉速：Speed of scoring saw blade |
8000r/min |
8000r/min |
| 副軸直徑：Scoring spindle diameter |
20mm |
20mm |
| 副電機功率：Scoring motor |
0.75kw |
0.75kw |
| 外形尺寸：Overall dimensions |
3000×3150×900mm |
000×3150×900mm |
產品描述
